Smart technology, portable equipment, fast deployment. And it always works.

Site 2020 is an industry innovator that offers the only ‘smart’ traffic control system for today’s job sites.

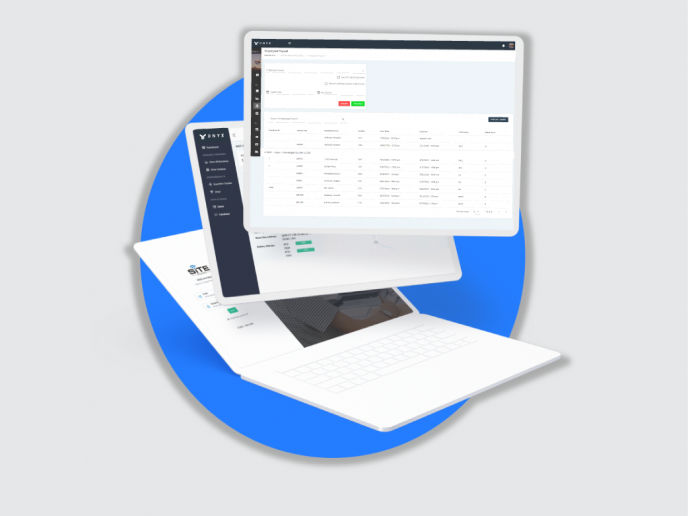

A connected job site allows companies to get more done safely than ever before.  Through our intuitive tablet-based interface and on-unit camera network, our wireless technology can be easily managed by a single person anywhere on the job site.

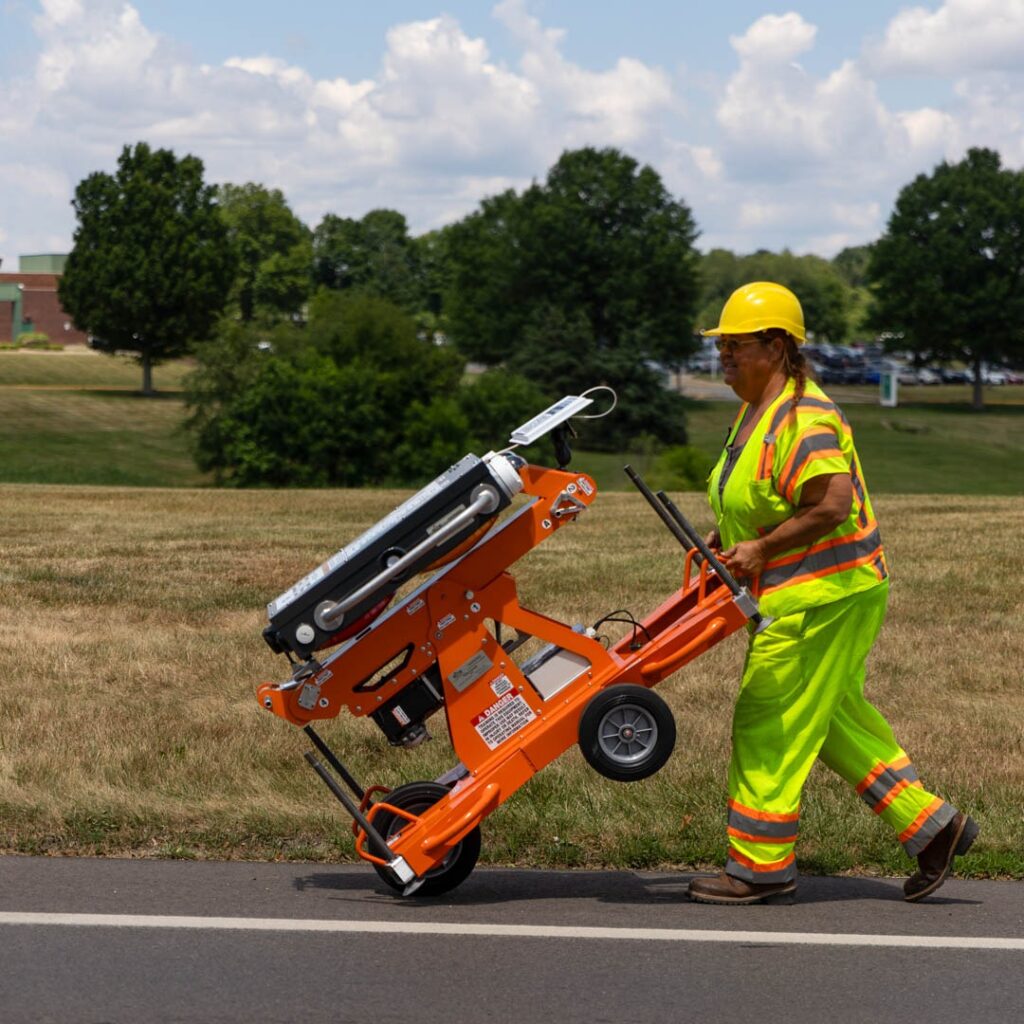

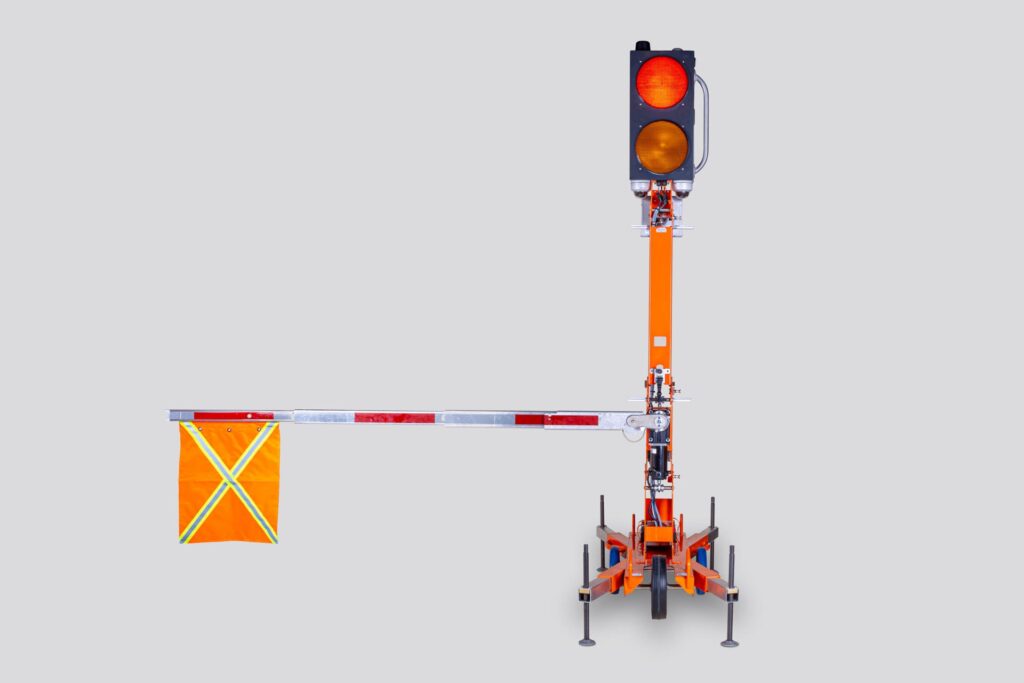

Our Guardian SmartFlagger Automated Flagger Assistance Device (AFAD) is easy to use and simple to deploy.

In the end, our system does what it’s supposed to: safely control traffic across your entire site, whenever and wherever that may be.

Features

  • Unit design best suited for short-term worksites
  • Manual mode or automatic timers (simple transition between required site settings)
  • Each unit equipped with conflict monitoring chip
  • Full redundancy of critical systems
  • MUTCD compliant
  • Adjustable outriggers for levelling
  • Light hoods optional
  • 7 days of recorded video

Specifications

Dimensions  2.4 m (8’) to bottom of traffic head – 60 cm (2’) wide at base
Material Aluminium
Transport Weight  63.5 kg (140 lbs)
Deployed Weight 113 kg (250 lbs) with batteries, plus additional weights as necessary
Ambient Temperature  -30°C to 60°C (-22°F to 140°F)
Shock and Vibration  MIL-810-G compliant by design
Ingress Protection  IP65 waterproof by design
Wind Resistance 90 km/h (55 mph) with outriggers
110 km/h (70 mph) with added sandbags
Battery 36 Hours
Wireless Range 3km (2 mi) end-to-end
Onsite Wi-Fi, fully functional without cellular
